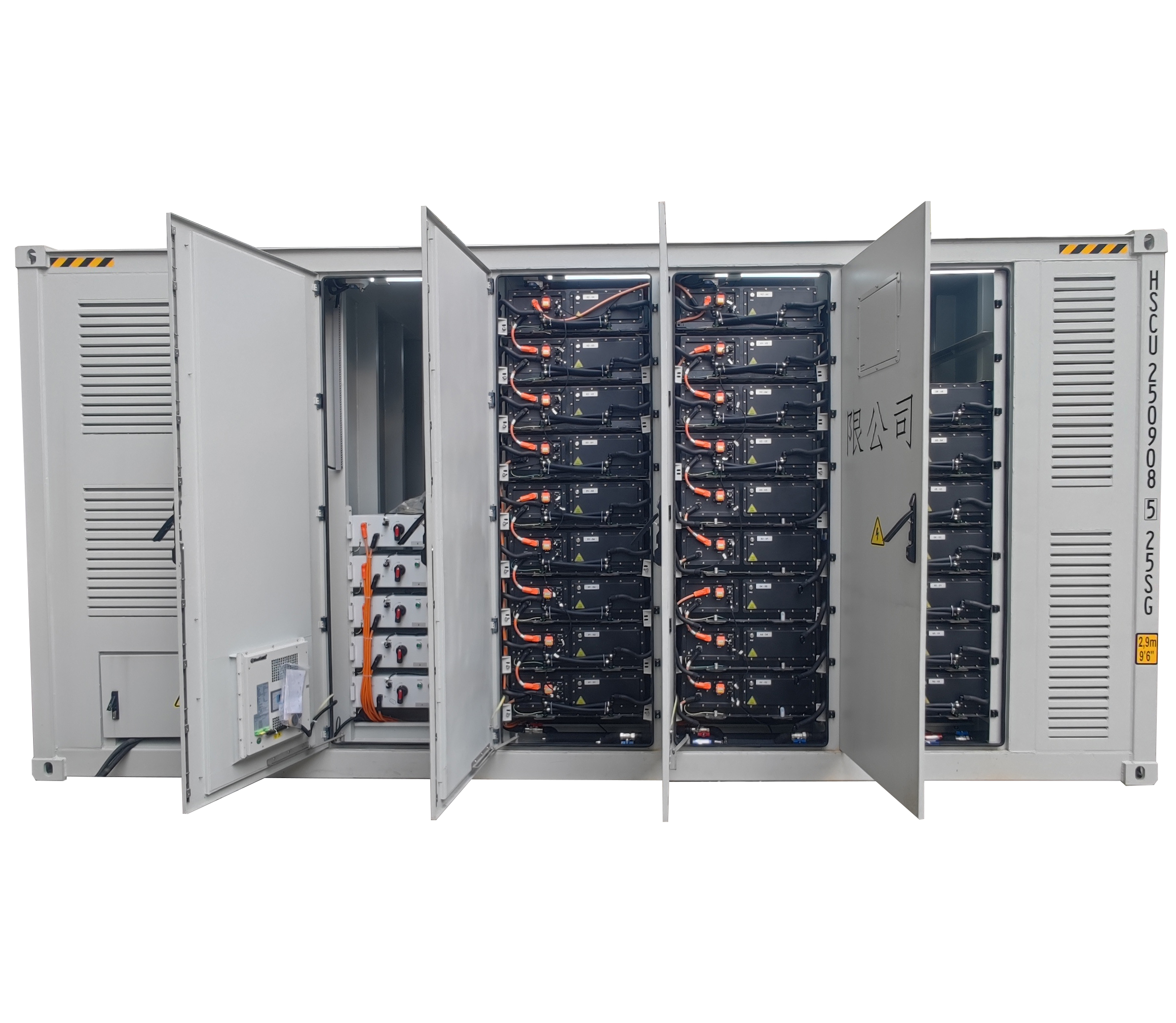

2MWh / 1000kW Commercial & Industrial Energy Storage System

• Model: TY-2088kW-BESS
• Brand: TAOYAN
• Code: TY2088-2026

Download: 2088kWh Energy Storage System Specifications.pdf

Multi-Device Access

Connects PCS, BMS, liquid cooling and meters with flexible quantities.

Real-Time Monitoring

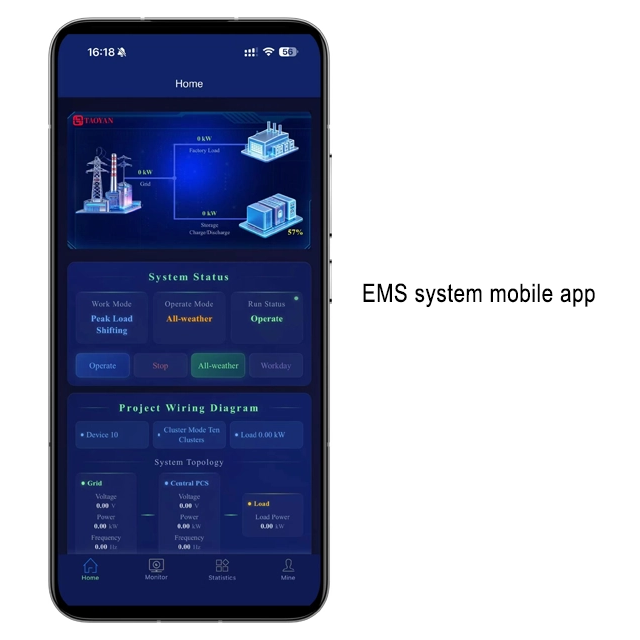

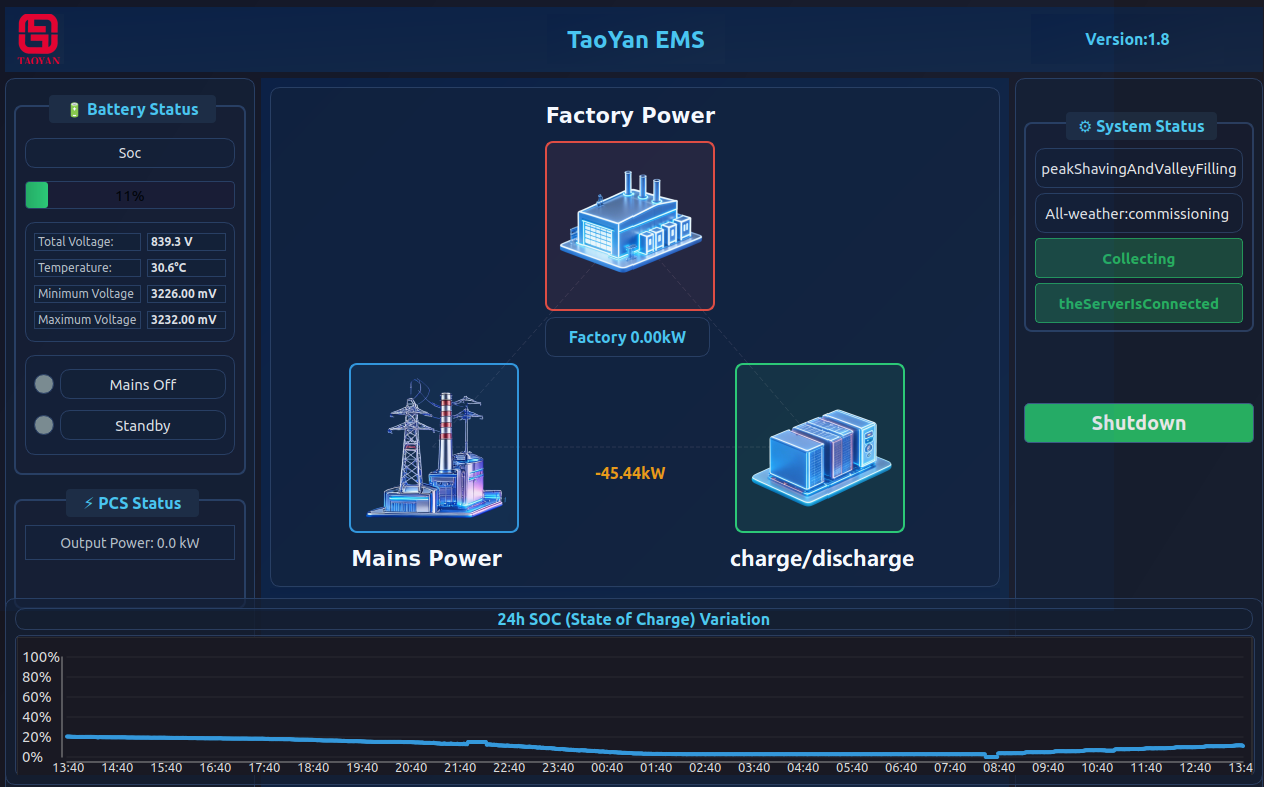

Live dashboard with total power, SOC and 24-hour trend.

Battery Protection

SOC / voltage / temperature thresholds with auto cutoff.

Power Limitation

Dynamic setpoints per transformer and grid limits.

Charge / Discharge Strategy

Up to 10 time-of-use periods for peak shaving.

Local GPIO & Remote Mgmt

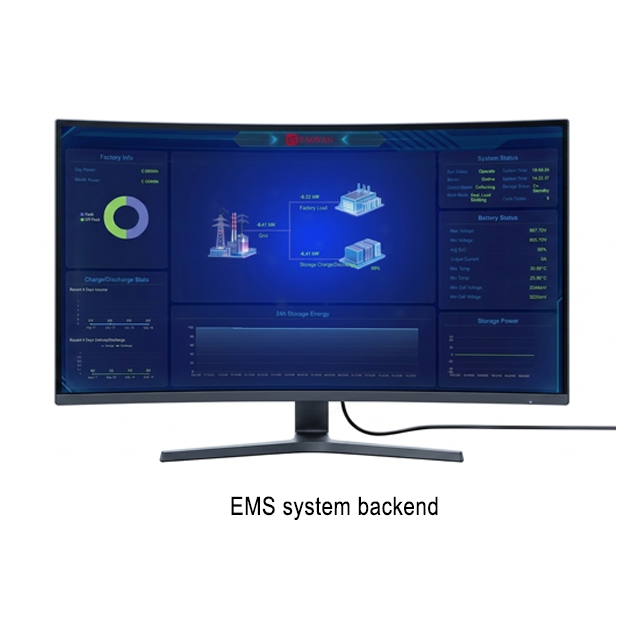

On-site HMI plus cloud backend with role permissions.

Fire Protection System

Wiring Methods

After-sales Service

Peak Shaving & Valley Filling

Charge during off-peak hours and discharge at peak tariff, cutting electricity bills for factories and commercial complexes.

Stable Microgrid Operation

Coordinate PV, storage and diesel with seamless island / grid-connected switching for critical loads.

Solar-Storage-Charging

Prioritize PV consumption, store excess energy and supply stable power to EV charging piles.

Backup Power Supply

On mains interruption the system switches to battery discharge, keeping core equipment running.

1. What are the main applications for the 2MWh / 1000kW system?

This MW-level system is designed for large-scale industrial parks, utility-scale peak shaving, and high-capacity renewable energy integration where massive energy buffer is required.

2. How does the 400V AC output benefit large industrial users?

The 400V rated voltage reduces current during high-power transmission, leading to lower line losses and significantly reducing the cost of AC cabling for large facilities.

3. Is the thermal management sufficient for such a large battery bank?

Yes. Our advanced liquid cooling system ensures that all 314Ah cells within the 2088kWh container operate within an optimal temperature range (deviation <3°C), even during high-power 1000kW discharge.

4. Can this system participate in grid frequency regulation?

With its high-power 1000kW inverter and rapid response time, the system is fully capable of participating in ancillary grid services like frequency response and voltage regulation.

5. What level of safety protection is integrated?

The system features a multi-tiered safety architecture, including per-cell monitoring, module-level aerosol suppression, and container-level fire protection systems.

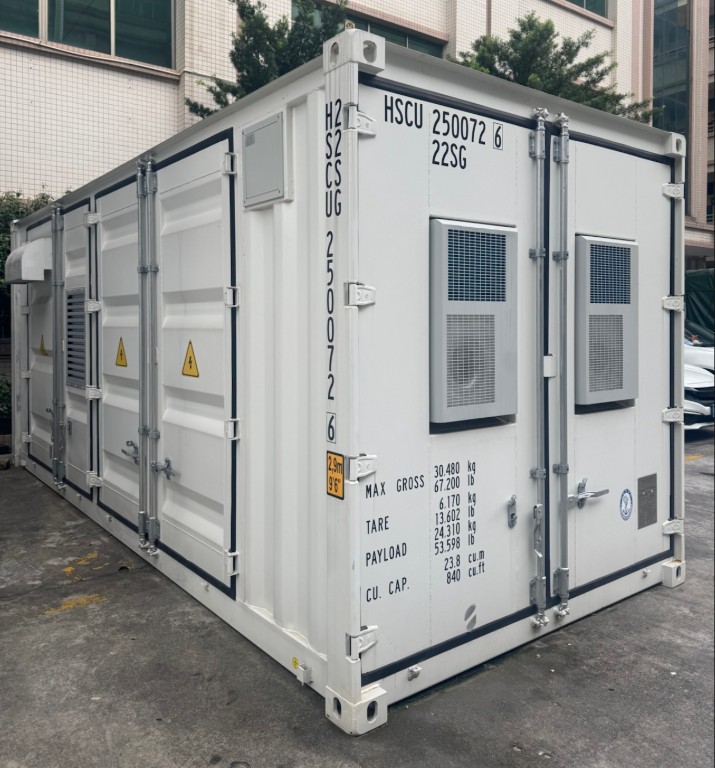

6. How is the 2088kWh system transported and installed?

It is housed in a standard ISO-compliant container. The system is "plug-and-play" ready, requiring only AC connection and communication commissioning upon arrival at the site.

7. How does the EMS handle complex energy trading?

Our smart EMS supports AI-driven strategies for arbitrage, demand response, and solar forecasting, maximizing the ROI of your 2MWh investment.
