Rack-mounted Energy Storage Battery Pack

10kW Modular Home Energy Storage System

Home / Products / Rack-mounted Energy Storage Battery Pack

Product Center

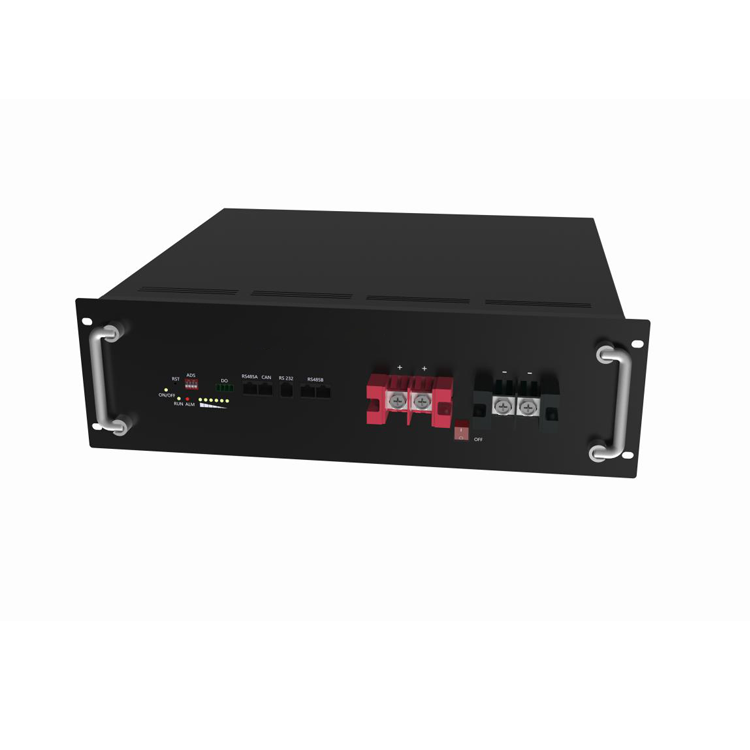

Rack-mounted Energy Storage Battery Pack

Model	TY-RACK-10K
Brand	TAOYAN
Module Capacity	5.12 kWh
Nominal Voltage	51.2 V
Cell Type	100Ah LiFePO4 (Grade A)
Inverter Output	10,000 W
Cycle Life	6000+ cycles
Protection	IP65

Battery Specifications

Premium LFP Cell Parameters

Nominal Voltage	3.2V
Capacity	100Ah (High Density)
Cycle Life (@25°C)	8000 Cycles (0.5C)
Internal Resistance	≤ 0.18mΩ
Operating Temp	Charge: 0~60°C / Discharge: -30~60°C
Certifications	UL1973, UL9540A, IEC62619, GB/T36276

Battery Module Specifications

Total Energy	5.12 kWh
Configuration	16S1P (Grade A Cells)
Nominal Voltage	51.2V
Max. Cont. Charge/Discharge	100A / 100A
Cycle Life	≥ 6000 Cycles
Dimension / Weight	500470170mm / 82kg

Hybrid Inverter Parameters

Rated AC Output Power	10,000 W
Max. PV Input Power	13,000 W
MPPT Voltage Range	150V – 850V
Max. DC Input Voltage	1000 V
Ingress Protection	IP65 (Outdoor Ready)
Installation Style	Wall-mounted / Compact

Scalable Modular Design

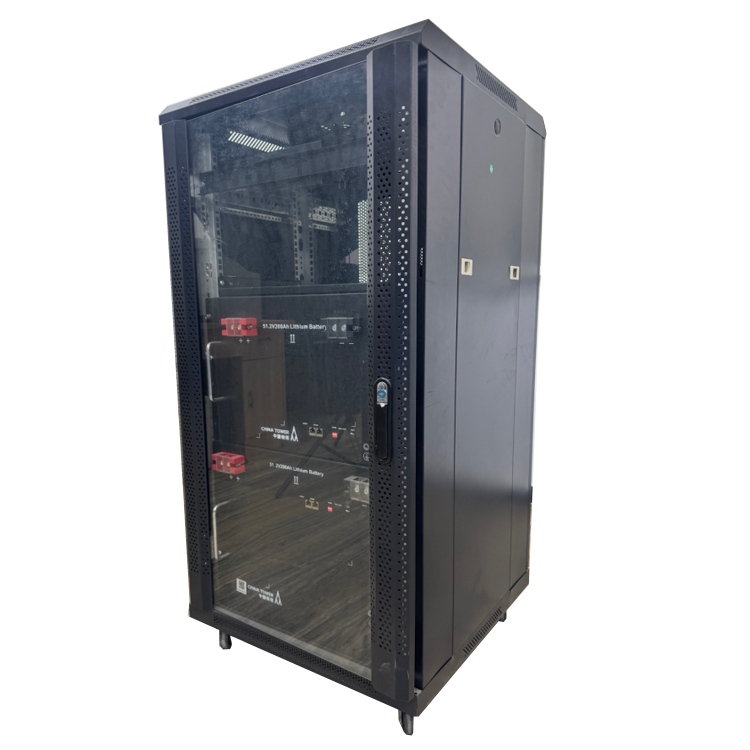

The TaoYan rack-mounted energy storage system pairs a 10kW hybrid inverter with modular 51.2V 100Ah LFP battery packs. Designed for parallel expansion, you can stack multiple units to scale capacity from 5.12kWh up to 100kWh+ to match any household or small commercial load. With Grade A LFP cells rated for 6000+ cycles and an IP65-rated inverter, the system delivers reliable, maintenance-free clean energy for over 15 years of dependable service.

Features

Grade A LFP Cells

Premium 100Ah LiFePO4 cells rated for 6000+ cycles, certified to UL1973, UL9540A, IEC62619 for safe, long-life operation.

IP65 Inverter

Dust-tight and water-jet protected, the 10kW hybrid inverter is safe for garages, carports, or sheltered outdoor walls.

Parallel Expansion

51.2V 100Ah modules stack freely in parallel, scaling capacity from 5.12kWh to 100kWh+ as your energy needs grow.

10kW Hybrid Output

10,000W rated AC output with 13,000W PV input and a wide 150V–850V MPPT range for maximum solar harvest.

Frequently Asked Questions

1. Is this 10kW system suitable for a standard family home?

Yes, 10kW is ideal for medium-to-large households. It can power heavy appliances like AC units, electric ovens, and EV chargers simultaneously while the 5.12kWh battery stores excess solar for night use.

2. Can I expand the battery capacity later?

Absolutely. The 51.2V 100Ah modules are designed for parallel expansion. You can stack multiple units to achieve 10kWh, 15kWh, or even 100kWh+ depending on your needs.

3. What is the benefit of the IP65 rating?

IP65 means the inverter is completely dust-tight and protected against water jets. This allows for safe installation in garages, carports, or even sheltered outdoor walls.

4. How long will the battery last?

With Grade A LFP cells rated for 6000+ cycles, if you charge/discharge once per day, the battery system can reliably serve your home for over 15 years.
