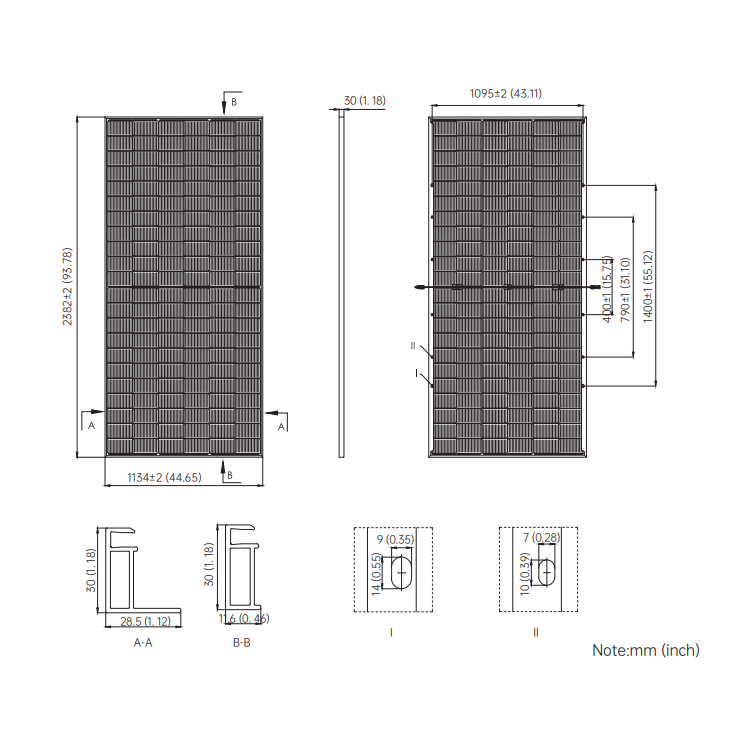

solar panel datasheet610-630W.pdf Mechanical Characteristics
| | Cell Typ | N Type Monocrystallin |
| Dimension (L × W × H | 2382*1134*30m | |
| Weigh | 32.6kg (71.87 lbs | |
| Glass | 2.0mm Heat Strengthened Glas | |
| Fram | Anodized Aluminium Allo | |
| Cable (Including Connector | 4mm² (IEC) |
Temperature Ratings
| |
Voltage Temperature Coefficient |
-0.25%/°C |
|
Current Temperature Coefficient | +0.04%/°C | |
|
Power Temperature Coefficient |
-0.29%/°C | |
|
Power Tolerance |
0~+3% | |
|
NOCT |
42±2°C | |
|
Bifaciality |
80±5% | |
|
Junction Box |
IP 68 |
