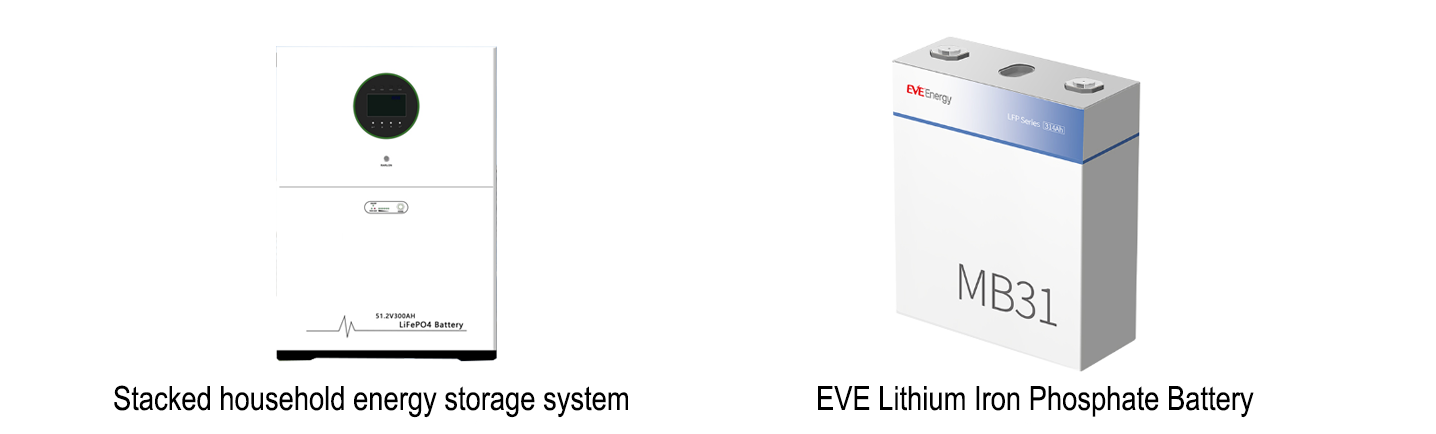

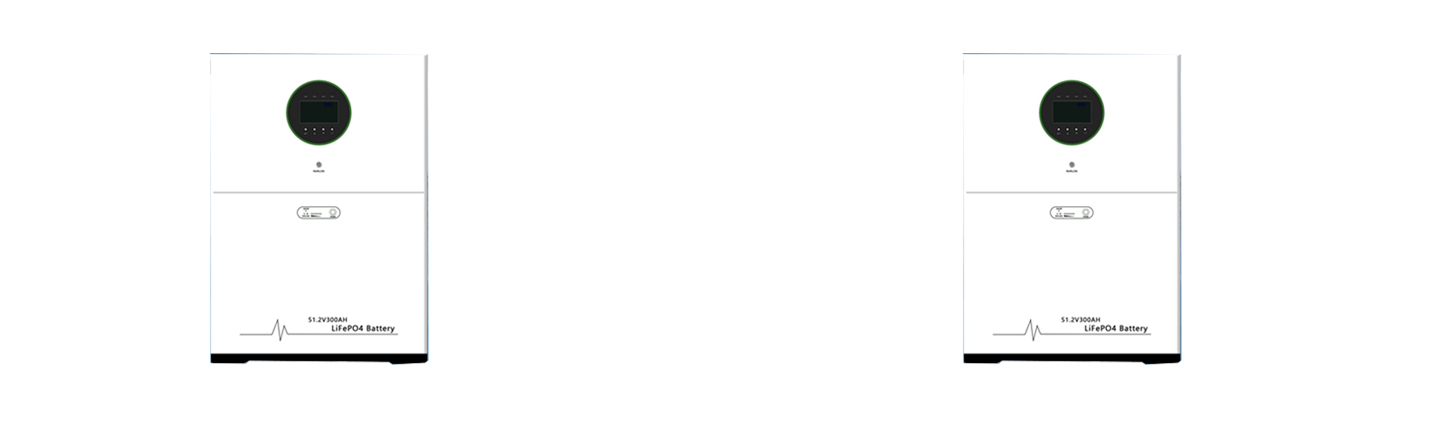

| Tem | 5KWH | 10KWH | 15KWH |
| Product Model | TY-FL-5KWH | TY-FL-10KWH | TY-FL-15KWH |
| configuration | 16S1P | 16S1P | 16S1P |
| Rated Energy | 5.12KWH | 10.24KWH | 16.07KWH |
| Rated Voltage | 51.2V | 51.2V | 51.2V |
| Battery Capacity | 100Ah | 200Ah | 314Ah |
| Max. charging current | 100A | 200A | 314A |
| Charge Cutoff Voltage | 59.2V | 59.2V | 59.2V |
| Continuous Discharge Current | 50A | 100A | 157A |
| Discharge cutoff voltage | 44V | 44V | 44V |
| Cycle Life | 6000 cycles | 6000 cycles | 6000 cycles |
| Charge efficiency | ≥98% | ≥98% | ≥98% |
| Maximum Continuous Discharge Rate | ≥96% | ≥96% | ≥96% |

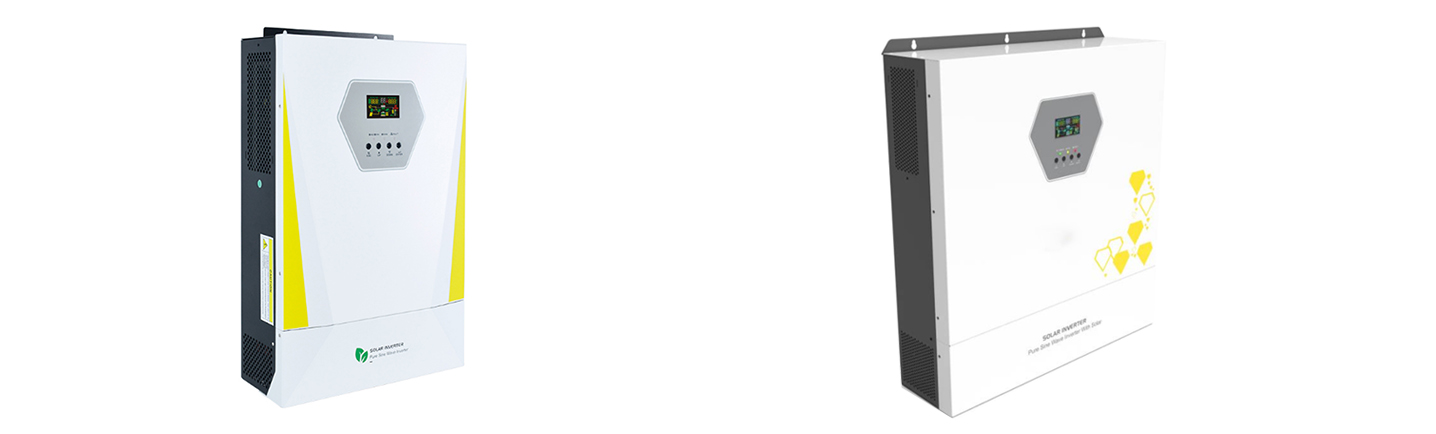

| Tem | 6.2KW | 11KW |
| AC Input | 220V/110V | 220V/110V |
| Input Voltage Range | 90-280VAC±3V | 90-280VAC±3V |
| Input Frequency | 50/60Hz±5% | 50/60Hz±5% |
| Rated Power | 6200W | 11000W |
| PV Inverter output Power | 6500W | 12000W |
| output voltage | 220/230/240VAC±5% | 220/230/240VAC±5% |
| ○utput Frequency | 50/60Hz±0.1% | 50/60Hz±0.1% |
| Peak Power | 12400VA | 22000VA |
| Grid Voltage Range | 170-265VAC | 170-265VAC |
| BatteryRated Voltage | 48Vdc | 48Vdc |
| PV Charging Mode | MPPT | Dual MPPT |
| Max PV Input Power | 8500w | 2×7500w |
| MPPT Input Voltage Range | 60-500vdc | 90~500Vdc |
| Max PV Charging current | 120A | 150A |

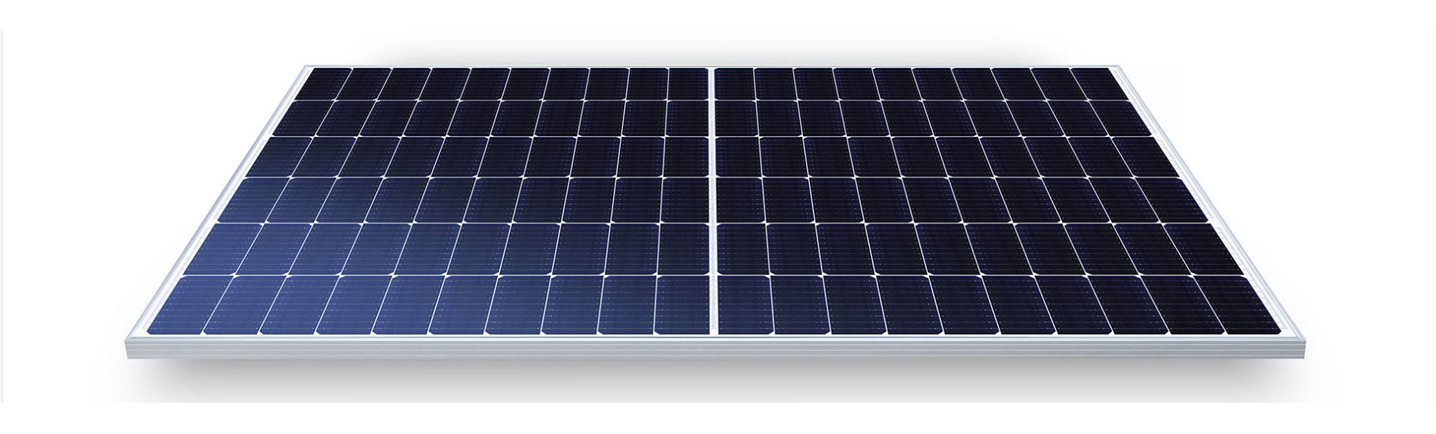

| Rated Power (Pmpp) | 610W |
| Rated Current (Impp) | 14.84A |
| Rated Voltage (Vmpp) | 41.11V |
| Short Circuit Current (Isc) | 15.48A |
| Open Circuit Voltage (Voc) | 48.95V |
| Module Efficiency (%) | 22.58% |
| Maximum Power (Pmax) | 672W |
| Optimum Operating Current (Impp) | 16.35A |
| Optimum Operating Voltage (Vmpp) | 41.11V |
| Weight | 32.6Kg |
| Dimension | 2382*1134*30mm |

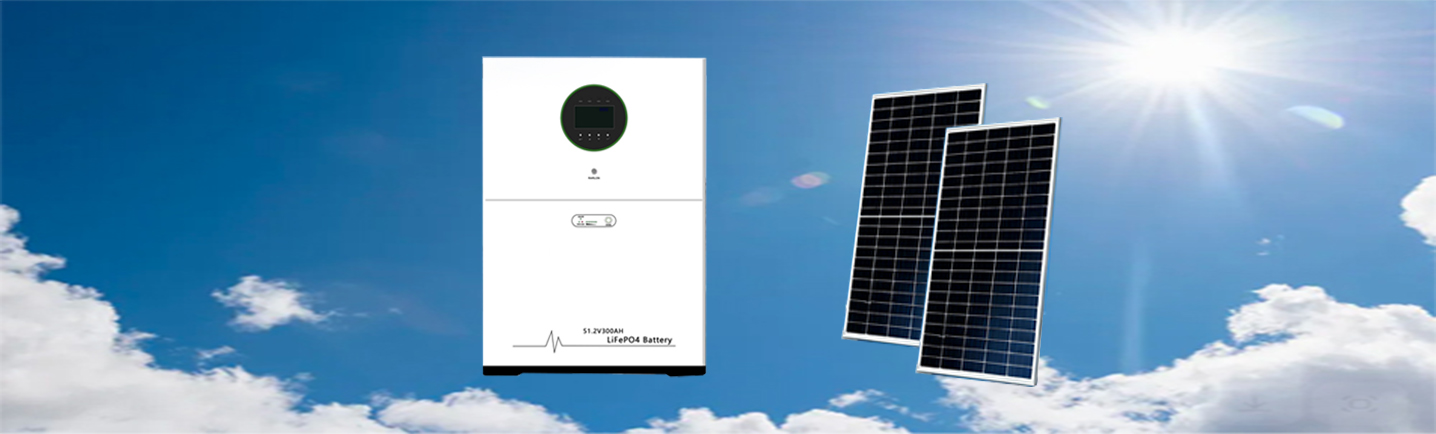

| Go with | 5 kWh pairs with 2 panels, 10 kWh with 4 panels, and 15 kWh with 6 panels. |
