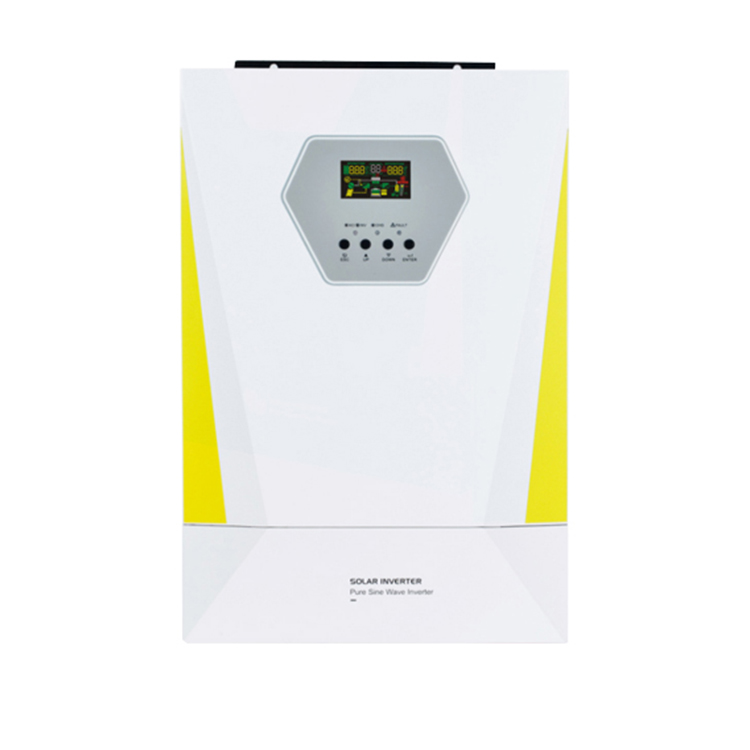

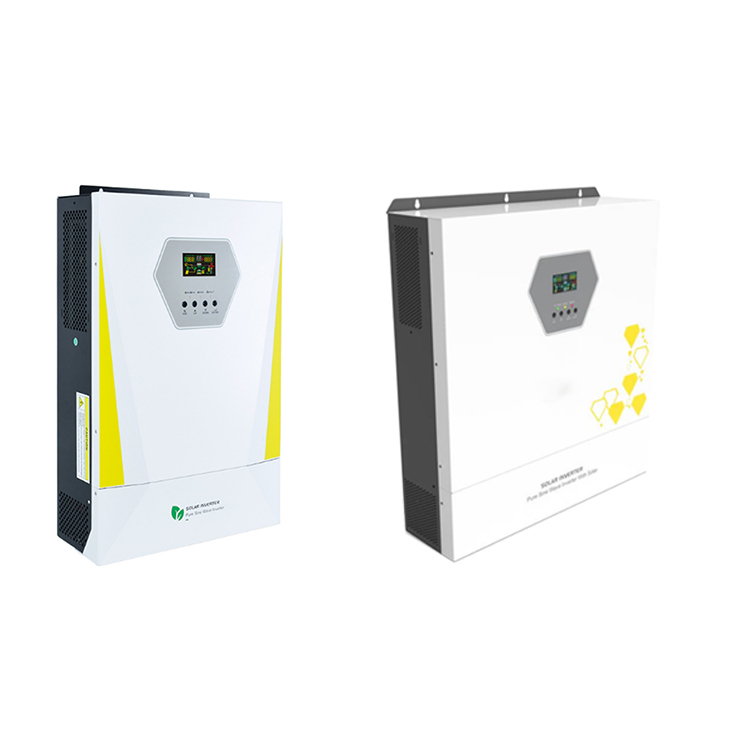

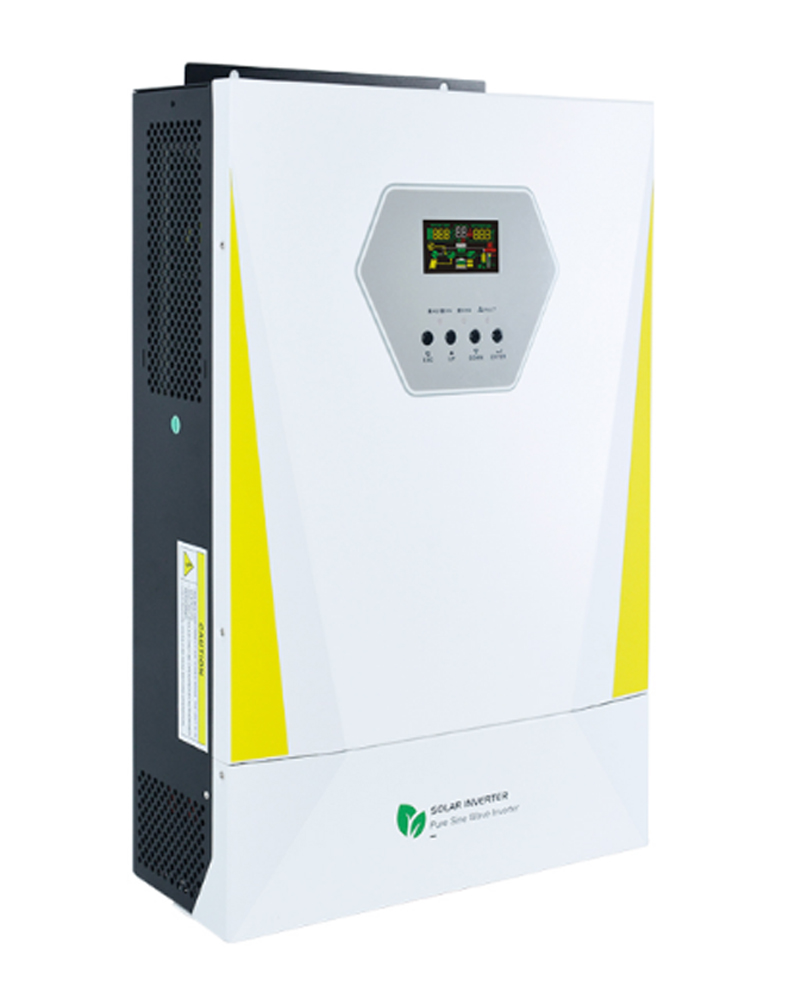

11kW 220V High-Frequency Inverter

Inverter Specifications

	model	6.2KW	11KW
	input standard	L+N+PE	L+N+PE
	input rated voltage	220/230/240VAc	220/230/240VAc
	AC Input	220V/110V	220V/110V
	Input Frequency	50/60Hz±5%	50/60Hz±5%
	PV Inverter output Power	6500W	12000W
	output voltage	220/230/240VAC±5%	220/230/240VAC±5%
	Output Frequency	50/60Hz±0.1%	50/60Hz±0.1%
	output wav	Pure Sine Wave	Pure Sine Wave
	Peak Power	12400V	22000VA
	Battery Rated Voltage	51.2V	51.2V
	Max PV Input Power	8500W	7500W*2
	Max Charging Curren	120A	150A
	PV Input Voltage	500Vdc	500Vdc

Connection Method

System Introduction

Connection Point: 800kVA Transformer Distribution Room

Energy Storage System Connection: Connected at a voltage level of 380V AC, as shown in the  diagram below.

Connection Method: Utilizes an AC {440Vac) coupled grid-connected pipeline configuration.

{As illustrated in the diagram below.)

Energy Storage Dashboard: When powered on, users can log in to monitor  and manage the entire factory's electricity consumption, revenue, etc.

The system's entire homepage retrieves real-time data, making it highly intuitive.

Earnings can be easily exported, with one—click report generation and real—time  remote statistics.
