In the rapidly evolving landscape of grid-scale energy storage, 2026 has marked a definitive turning point. The industry has officially moved past the experimentation phase of the 314Ah Lithium Iron Phosphate (LFP) cell, establishing it as the new cornerstone of utility-scale projects. While the 280Ah cell served the industry faithfully during the initial expansion of the Energy Storage System (ESS) market, the demand for higher density, lower CapEx, and optimized footprint has made the transition to 314Ah inevitable. This article provides a rigorous technical and economic analysis of why 314Ah cells are not just an alternative, but a mandatory upgrade for modern energy infrastructure.

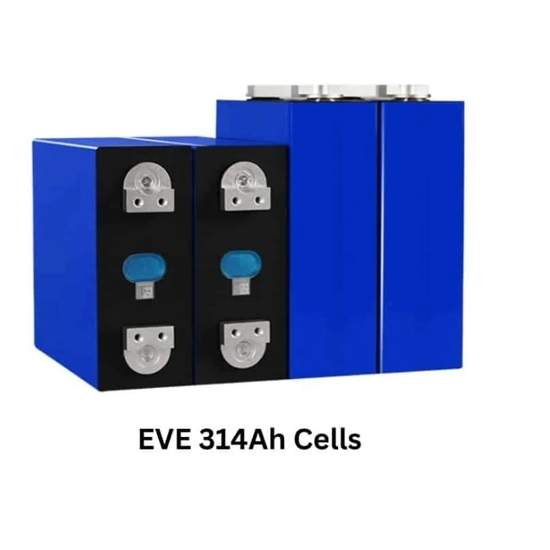

The transition from 280Ah to 314Ah is a masterpiece of constrained engineering. Manufacturers were tasked with increasing capacity by over twelve percent while strictly adhering to the 71173 physical dimensions which specify a 173mm height and 71mm width. This was not achieved by a single breakthrough but through a cumulative optimization of the cell internal architecture. By utilizing advanced pre-lithiation techniques and high-capacity anode materials, engineers have managed to squeeze more active ions into the same volume, pushing the energy density closer to the theoretical limits of LFP chemistry.
One of the primary technical hurdles in moving beyond 280Ah was the management of internal dead space. In 314Ah cells, the ratio of active material to inactive components like tabs, current collectors, and casing has been significantly improved. Thinner, more heat-resistant separators have allowed for more layers of electrodes, while optimized electrolyte wetting processes ensure that every square millimeter of the high-capacity cathode is utilized. This results in a cell that is not only more powerful but also more efficient in its chemical conversion processes, reducing the overall mass per kilowatt-hour of storage.
A common misconception is that higher density leads to higher heat. However, the 314Ah generation features ultra-low internal resistance. By optimizing the tab design and improving the conductivity of the electrode slurry, manufacturers have actually reduced the heat generated during high-rate C-rate operations. This thermal consistency is vital for the longevity of the battery string, as it prevents the hot spot phenomenon that can lead to premature degradation in older 280Ah systems. The ability to maintain a uniform temperature gradient across the cell surface is one of the key indicators of a high-quality 314Ah design.
The primary driver for the 314Ah dominance is not just better technology, but better economics. For a 100MWh project, the shift from 280Ah to 314Ah technology translates into millions of dollars in savings across the project lifecycle. This economic advantage is localized in three main areas: hardware reduction, logistics optimization, and labor efficiency. As global competition intensifies, developers who fail to adopt these efficiencies risk being outbid in competitive utility tenders.

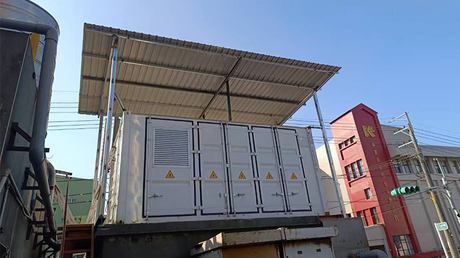

The most significant economic milestone enabled by 314Ah cells is the realization of the 5MWh energy storage container in a standard 20-foot footprint. Previously, the 280Ah-based systems typically peaked at 3.72MWh per container. Moving to 5MWh represents a thirty-four percent increase in energy density per unit. This means for a fixed project size, a developer needs roughly twenty-five percent fewer containers. This reduction scales across every aspect of the Balance of Plant, from the number of DC-to-DC converters to the complexity of the AC-coupled integration, significantly lowering the initial investment required for grid-scale deployment.
Shipping a 5MWh unit costs nearly the same as shipping a 3.72MWh unit. Therefore, the logistics cost per megawatt-hour is drastically reduced. On-site, fewer units mean fewer crane lifts, fewer foundation pads to pour, and fewer high-voltage cables to pull. These soft costs often account for a significant portion of project budgets, and the 314Ah revolution targets them directly. In high-labor-cost markets like North America and Europe, these savings are often the difference between an Internal Rate of Return that satisfies investors and one that does not, making high-density cells the preferred choice for IPPs.
Critics of the rapid capacity increase often point to potential trade-offs in cycle life. However, data from 2026 deployments shows that 314Ah cells are outperforming their 280Ah predecessors in real-world degradation tests. This is largely due to the maturation of the bamboo-style stacking and winding technologies which provide better mechanical support to the electrodes as they expand and contract during charge cycles, preventing the mechanical fatigue that leads to capacity loss over time.
Most Tier-1 314Ah cells now carry a warranty for 10,000 cycles or more, assuming standard operating conditions. This exceeds the typical 6,000 to 8,000 cycle range of early-generation 280Ah cells. By improving the stability of the Solid Electrolyte Interphase layer, manufacturers have ensured that the extra capacity does not come at the cost of durability. This extended life cycle directly lowers the Levelized Cost of Storage, as the asset can be amortized over a longer operational period, providing a much higher total energy throughput over the life of the system.
While the cell-level benefits are clear, the transition to 314Ah places a higher demand on system integrators. Managing the higher energy concentration requires a paradigm shift in thermal management and fire suppression strategies. Liquid cooling has become the mandatory standard for 314Ah systems, as traditional air cooling is no longer sufficient to maintain the required temperature delta of less than three degrees Celsius across the entire battery module, which is necessary to prevent unbalanced aging of the cells.
Modern 5MWh containers utilize multi-channel liquid cooling plates that provide independent cooling to each stack of 314Ah cells. This precision cooling ensures that the cells stay within their optimal temperature window, maximizing efficiency and safety. Furthermore, the integration of AI-driven predictive maintenance allows the system to adjust coolant flow in real-time based on the discharge load, a feature that was optional in the 280Ah era but is now critical for high-density 314Ah deployments to ensure long-term reliability and safety compliance.
The market has reached a tipping point where the production capacity for 314Ah cells has surpassed that of 280Ah cells. For top-tier manufacturers, the 280Ah production lines are being decommissioned or retooled to handle the newer format. The economies of scale have favored the 314Ah format so heavily that the price per watt-hour is now lower for the 314Ah than for the legacy 280Ah. This negative price premium has effectively locked in 314Ah as the industry standard for the remainder of the decade across all major utility projects.
As 314Ah becomes the primary choice for utility-scale projects, the 280Ah cell is being pushed into secondary markets, such as residential storage or smaller commercial backup systems. However, even in these sectors, the density creep is inevitable. Within the next twenty-four months, it is expected that 314Ah will be the baseline across all professional energy storage applications, from industrial microgrids to telecom backup power, as the supply chain fully aligns with the higher capacity standard.
The concentration of five megawatt-hours in a single twenty-foot enclosure requires the highest level of safety compliance. The industry has standardized on the NFPA 855 and UL 9540A testing protocols, which 314Ah systems must pass at the unit level. These tests involve destructive cell-level heating to ensure that if a single cell fails, the resulting thermal event does not propagate to neighboring cells or modules. The 314Ah cells of 2026 are designed with targeted venting paths that direct hot gases away from critical components, representing a significant safety upgrade over legacy 280Ah designs.
The dominance of the 314Ah cell is a clear signal that the energy storage industry has reached technical maturity. By delivering higher density, superior safety, and better economics, the 314Ah cell has solved the most pressing challenges of the utility-scale market. As we move forward, the focus will shift from which cell to use to how to best manage the massive power these cells provide through intelligent software and robust integration. For any developer or investor looking to build a sustainable and profitable energy storage project in today's market, the 314Ah cell is no longer an option—it is the foundation of the future energy grid.
The energy increase is approximately 12.14 percent at the individual cell level. However, at the system level, this allows for a 34 percent increase in container density, moving from 3.72MWh to 5.0MWh. This is possible because the higher-capacity cells allow for more efficient use of the internal rack and container space without needing larger physical structures.
Yes, the 314Ah cell is slightly heavier due to the increased volume of active materials inside. However, because fewer cells and containers are required for the same total project capacity, the overall weight per megawatt-hour of the entire system is actually reduced. This helps with site logistics and foundation requirements, lowering the structural costs of the installation.
Yes, they are fully compatible. The nominal voltage of a 314Ah LFP cell remains 3.2V, which is identical to the 280Ah cell. This means that string configurations and DC bus voltages remain compatible with existing 1500V Power Conversion Systems, making it easy for integrators to switch to the higher-capacity cells without changing their electrical architecture.
Due to improved manufacturing and chemistry, many 314Ah cells now offer a 10-year to 15-year performance warranty with a higher cycle life rating, often reaching 10,000 cycles at 80 percent State of Health. This is generally superior to the warranties provided for older 280Ah technology, offering better long-term security and ROI for project investors.
Liquid cooling is essential because the 314Ah cell has a higher energy concentration. To maintain the cells within their optimal temperature range and prevent degradation, the heat must be removed more efficiently than air cooling can provide. Liquid cooling ensures uniform temperatures across the entire container, which is critical for safety and long-term performance.
