In the rapidly shifting landscape of global renewable energy, the demand for higher energy density and enhanced safety has never been more urgent. As grid operators move away from fossil fuels, the "storage gap" must be filled by systems that are not only larger but smarter and more thermally efficient. We are currently witnessing a generational leap in Battery Energy Storage System (BESS) design, centered around the mass adoption of 314Ah Lithium Iron Phosphate (LFP) cells and advanced liquid cooling architectures.
For years, the 280Ah cell was the undisputed industry standard for commercial and industrial (C&I) and utility-scale projects. However, as land costs rise and project scales move into the Gigawatt-hour (GWh) range, the industry has demanded more power in the same physical dimensions.
The transition to 314Ah is not merely a slight capacity upgrade; it represents a significant optimization of internal cell chemistry and mechanical spacing. By improving the material coating density on the cathode and anode and utilizing thinner separators with higher porosity, manufacturers have squeezed approximately 12% more energy into the standard 280Ah form factor.
When these cells are integrated into a standard 20-foot container, the impact is transformative. A container that previously held 3.72MWh using 280Ah cells can now reach 5MWh or higher using 314Ah cells. This "5MWh Era" allows developers to reduce the total number of containers required for a project, significantly lowering Balance of Plant (BoP) costs, including cabling, foundation work, and land leasing.
As energy density increases, the challenge of heat dissipation becomes exponential. Traditional air-cooling systems, which rely on fans and ducting to move ambient or chilled air across battery modules, are reaching their physical limits.
Air cooling suffers from two primary flaws in high-density environments:
Temperature Inconsistency: Air is a poor heat conductor. In large racks, the cells closest to the intake are much cooler than those at the exhaust, leading to "hot spots."
Parasitic Load: To keep a 5MWh container cool with air, fans must run at high speeds, consuming a large percentage of the stored energy.

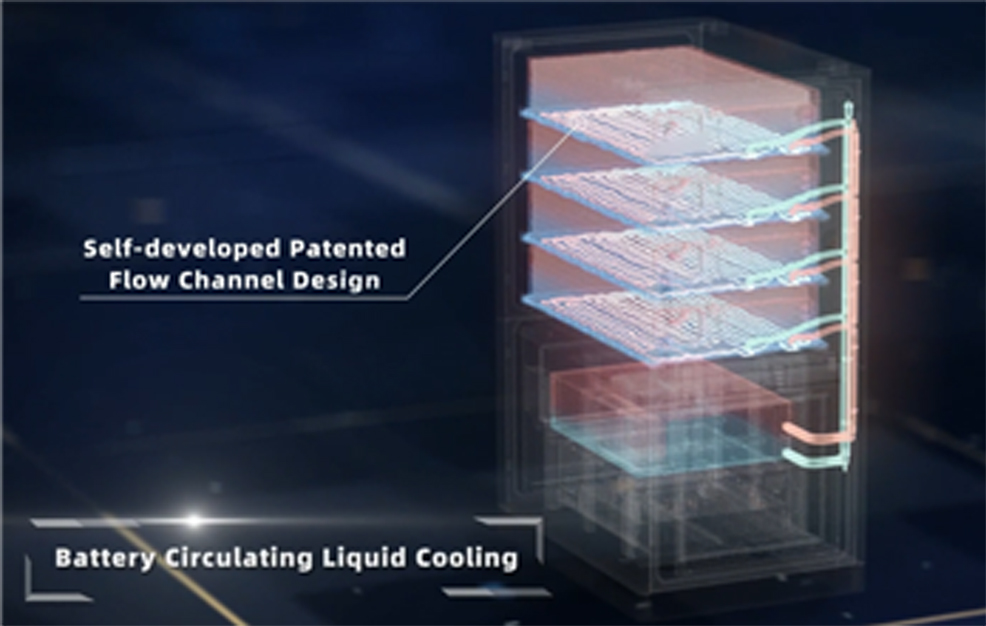

Liquid cooling utilizes a closed-loop system where a coolant (typically a water-glycol mixture) flows through cold plates in direct contact with the battery cells.
Thermal Uniformity: Liquid cooling can maintain a temperature difference $(\Delta T)$ of less than 3°C across the entire battery rack. This uniformity is critical because battery aging is accelerated by heat; keeping all cells at the same temperature ensures they age at the same rate.
Space Efficiency: Because liquid cooling components are more compact than bulky air ducts, more batteries can be packed into the same container.
Protection from Environments: Since the system is closed-loop, the internal battery environment is isolated from external dust, humidity, and salt spray, which is vital for coastal or desert installations.
Safety remains the "glass ceiling" of the energy storage industry. High-density 314Ah systems require multi-layered safety protocols to prevent thermal runaway.
Modern Battery Management Systems (BMS) now perform real-time "electrocardiograms" on every cell. By monitoring voltage, temperature, and internal resistance, the BMS can predict a potential failure before it happens and isolate the specific module.
If a thermal event does occur, the container is equipped with a multi-stage defense:
Gas Detection: Sensors detect off-gassing (such as CO or Hydrogen) long before smoke appears.
Aerosol or Water-Mist Suppression: Automated systems flood the compartment to lower temperatures and suppress flames.
Explosion Venting: Modern containers feature structural panels designed to release pressure safely, preventing a catastrophic rupture of the enclosure.
For investors and IPPs (Independent Power Producers), the ultimate metric is the Levelized Cost of Storage (LCOS).
By using 314Ah cells, the "Energy-to-Footprint" ratio improves. Fewer containers mean fewer AC/DC conversions, fewer transformers, and less onsite labor. In many cases, moving from a 280Ah/3.72MWh platform to a 314Ah/5MWh platform can reduce CAPEX by 10% to 15% per Megawatt-hour.
Liquid cooling reduces the parasitic power consumption of the HVAC system. Furthermore, because the cells operate in a tighter temperature window, the cycle life is extended. A system that lasts 10,000 cycles instead of 7,000 provides significantly higher lifetime value, delaying the need for expensive battery augmentation or replacement.
While LFP chemistry currently dominates the market, the industry is already looking toward the next frontier.
We are seeing a move toward centralized "Energy Storage Power Plants" that act exactly like traditional coal or gas plants but with zero emissions. These projects rely on the high-density configurations enabled by 314Ah technology to provide grid-forming services and black-start capabilities.
As software becomes as important as hardware, energy storage systems are being integrated into VPP networks. AI-driven algorithms predict grid demand peaks and discharge the 314Ah systems at the most profitable moments, maximizing the internal rate of return (IRR) for the operator.
Q1: Can 314Ah cells be used with existing 280Ah inverters?
A1: Yes, most high-string voltage inverters (like those from Deye, Sungrow, or SMA) are compatible with 314Ah configurations. However, the DC-side wiring and BMS communication protocols must be calibrated to handle the increased capacity and slightly different discharge curves.
Q2: How much longer does a liquid-cooled system last compared to air-cooled?
A2: On average, liquid cooling can extend the functional life of a battery rack by 20% to 30%. By maintaining a stable temperature, it slows the chemical degradation of the LFP cells, allowing for more cycles before the system hits its End of Life (EOL) at 80% State of Health.
Q3: Is the 314Ah cell safe for residential use, or is it only for utility-scale?
A3: While 314Ah cells are primarily designed for large-scale containers (BESS), they are beginning to appear in high-end stackable residential systems. Their high density allows for 15kWh or 20kWh "slimline" home batteries that take up very little garage space.
Q4: What is the maintenance requirement for a liquid-cooled BESS?
A4: Maintenance is relatively low but specific. It involves checking the coolant levels and the integrity of the pumps and valves every 12 to 24 months. Because it is a closed system, there are no air filters to change, which can actually reduce long-term maintenance labor compared to air-cooled units.
Q5: How does the 314Ah system handle extreme cold weather?
A5: The liquid cooling system actually doubles as a heating system. In cold climates, the system can circulate warmed coolant to "pre-heat" the batteries to an optimal operating temperature, ensuring full power performance even in sub-zero conditions where air-cooled systems might struggle.
