Liquid-cooled Battery Module (1P52S Cell)
| Capacity | 52.2WH |
| Configuration | 22S1P |
| Nominal Voltage | 166.4V |
| Cell Capacity | 314Ah |
| Dimension | 442*2050*235mm |
| Weight | 310KG |
Inverter Specifications
| AC Rated output power | 500KW |
| AC Maximum output power | 525KW |
| Rated voltage | 400.0V |
| Rated frequency | 50/60Hz |
| Maximum PV input voltage | 1000.0V |
| MPPT operating voltage range | 250V-850V |
| MPPT full load voltage range | 450V-850V |

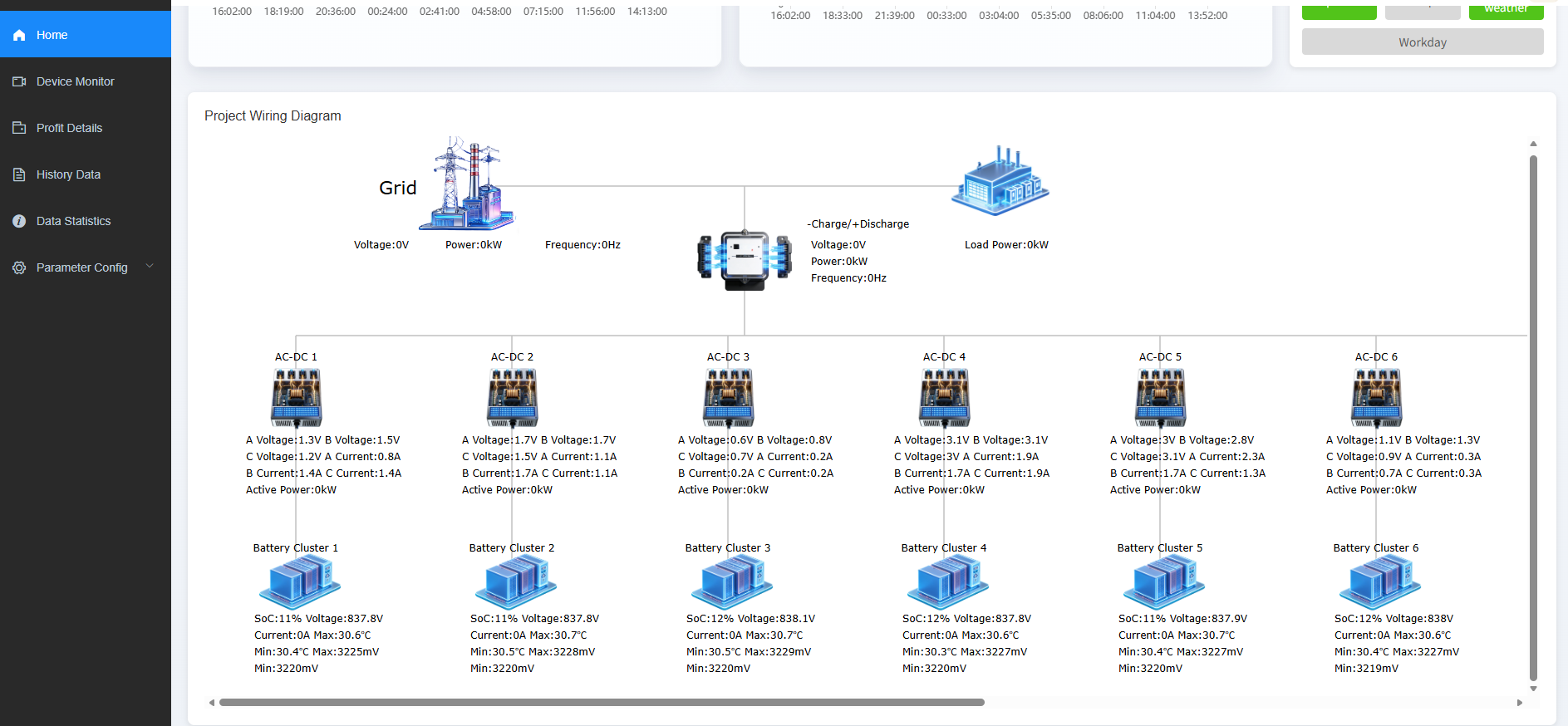

System Topology & Dashboard
Connection Point: 800kVA Transformer Distribution Room
Connected at 380V AC utilising an AC coupled grid-connected configuration.

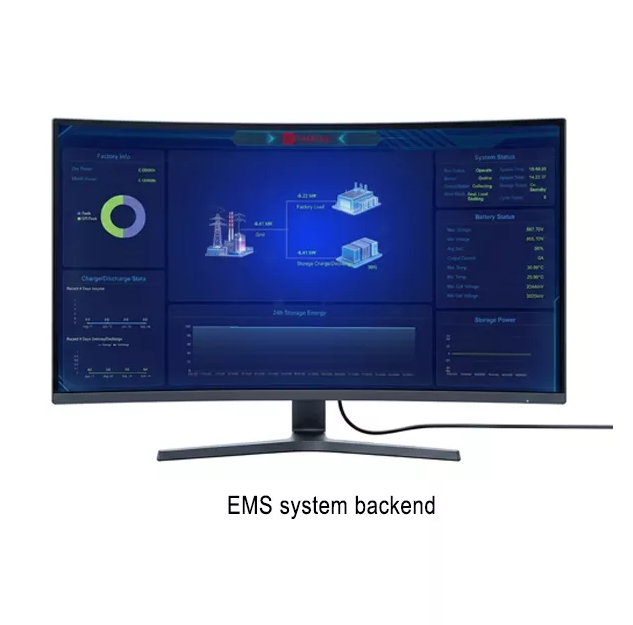

Energy Storage Dashboard
Intuitive management for factory electricity consumption and revenue monitoring.
Frequently Asked Questions
1. Why choose the 314Ah cell over the standard 280Ah cell?
The 314Ah cell represents the latest generation of LFP technology, offering higher energy density and improved cycle stability. In a 1566kWh system, this reduces system complexity and improves overall reliability.
2. How much space can I save with the Liquid Cooling design?
Liquid cooling allows for a 30% higher energy density compared to air-cooled systems, significantly reducing the installation footprint.
3. Can I monitor the return on investment (ROI) in real-time?
Yes. Our smart Dashboard tracks energy savings from peak-shaving and solar self-consumption, providing clear financial reports.
4. Is this system compatible with existing solar installations?
Yes. The AC-coupled design connects directly to your 380V distribution room, working alongside any existing solar inverter brand.
5. What happens during a power outage?
With an optional STS module, the system provides seamless backup power to keep critical production lines running.
6. What is the expected lifespan of the liquid-cooled module?
By maintaining stable temperatures, the system extends battery life to over 8,000 cycles (approx. 15-20 years).
7. Is the installation complex for this 500kW system?
The "All-in-One" pre-integrated design reduces on-site installation time by up to 60%. Just place the cabinet and connect the AC cables.
