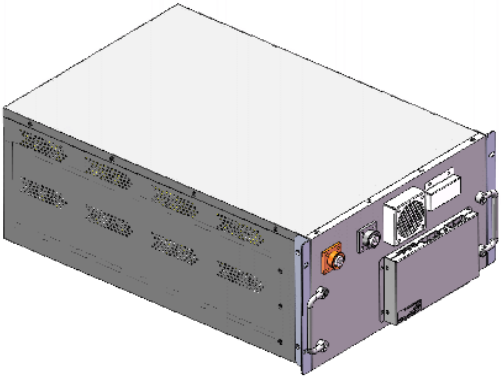

1720 kWh Energy Storage System Specifications.pdf | Capacity | 21.5KWH |
| Configuration | 24S1P | |
| Nominal Voltage | 76.8V | |
Cell capacity | 280Ah | |
| Dimension | 442*1050*235mm | |
| Weight | 145KG |
 | AC Rated output power | 800KW |
AC Maximum output power | 840KW | |
Rated voltage | 400.0V | |
Rated frequency | 50/60Hz | |
Maximum PV input voltage | 1000.0V | |
MPPT operating voltage range | 250V-850V | |
MPPT full load voltage range | 450V-850V |
Connection Point: 800kVA Transformer Distribution Room

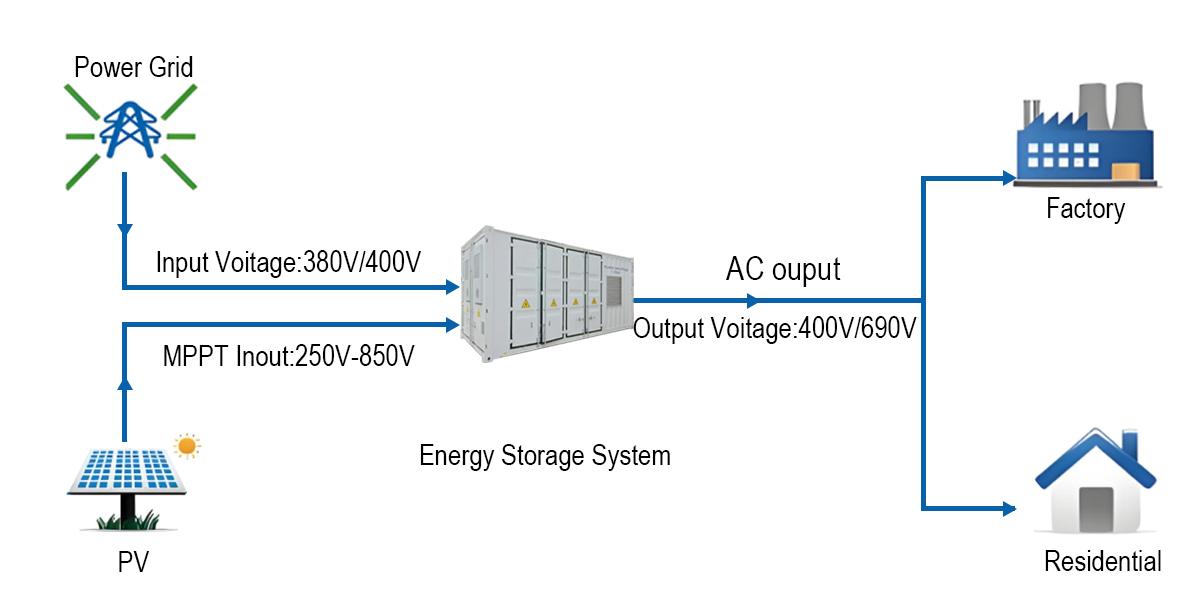

Energy Storage System Connection: Connected at a voltage level of 380V AC, as shown in the diagram below.
Connection Method: Utilizes an AC {440Vac) coupled grid-connected pipeline configuration.
{As illustrated in the diagram below.)
Specifications for 1720kWh Energy Storage System.pdfEnergy Storage Dashboard: When powered on, users can log in to monitor and manage the entire factory's electricity consumption, revenue, etc.
The system's entire homepage retrieves real-time data, making it highly intuitive.
Earnings can be easily exported, with one—click report generation and real—time remote statistics.
