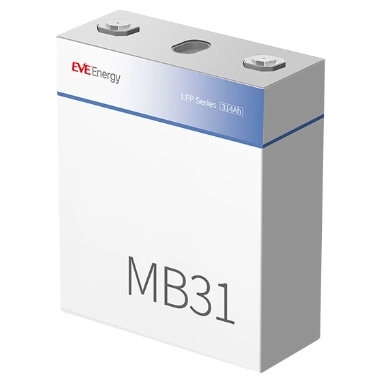

 | Nominal Voitage(V) | 3.2 | |
| Capacity(Ah) | 314 | ||
| Nominal Cycle Life(25℃） | 8000（0.5C/0.5C） | ||
| Capacity Retention | ≥70% | ||
| Internal Resistance(mΩ) | ≤0.18 | ||
| Weight（g） | 5600±300 | ||
| Dimensions(mm) | 207.2*173.7*71.7 | ||
| Gravimetric Energy Density(Wh/Kg) | 179 | ||

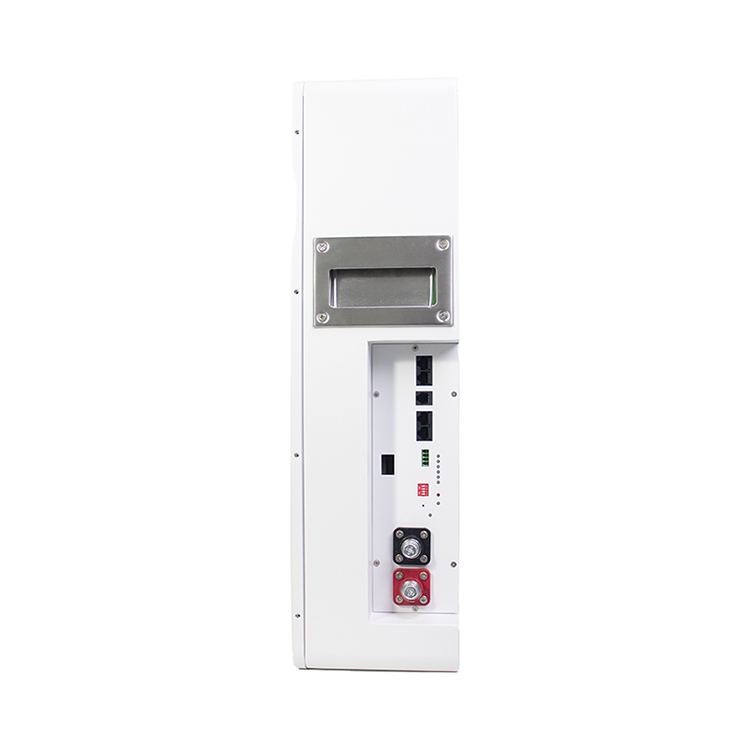

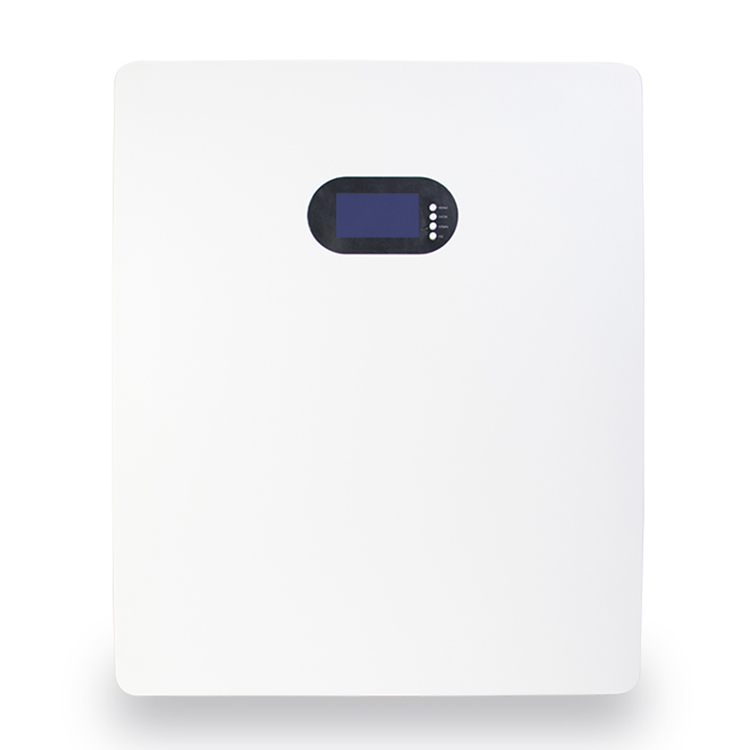

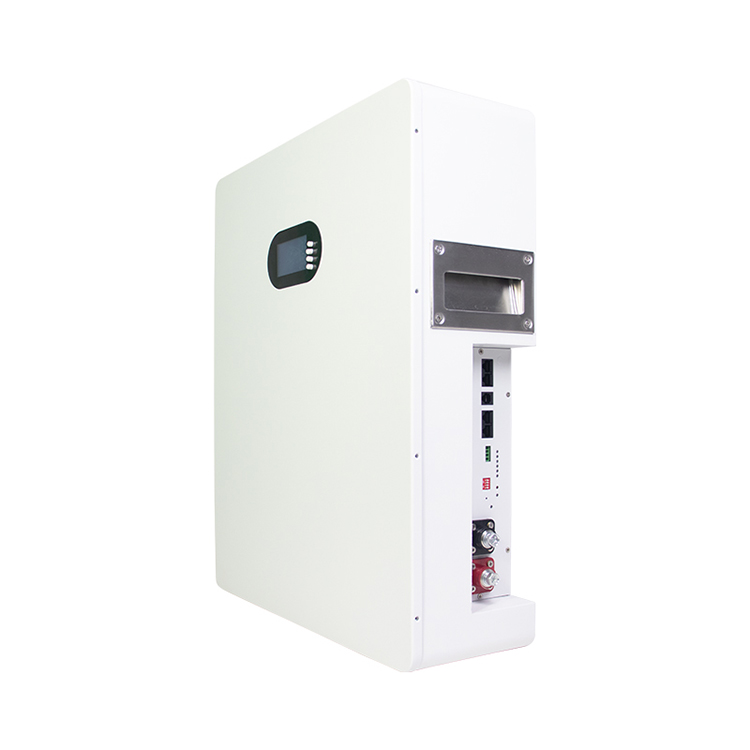

 | Capacity | 5KWH | 10KWH |
| Configuration | 16S1P | 16S1P | |
| Nominal Voltage | 51.2V | 51.2V | |
| Cell capacity | 100Ah | 200Ah | |
| Discharge Cut-off | 43.2V | 43.2V | |
| Charge Cut-off | 58.4V | 58.4V | |
| Max. Continuous Discharge Current | 100A | 200A | |
| Max. Continuous Charge Current | 100A | 200A | |
| Cycle Life | ≥ 6000 cycles | ≥ 6000 cycles | |
| Operating Temperature | -20°C to50°C | -20°C to50°C | |
| Dimension | 680*245*560mm | 980*305*560mm | |
| Weight | 75Kg | 95Kg |
Connection Point: 800kVA Transformer Distribution Room
Energy Storage System Connection: Connected at a voltage level of 380V AC, as shown in the diagram below.
Connection Method: Utilizes an AC {440Vac) coupled grid-connected pipeline configuration.
{As illustrated in the diagram below.)
Energy Storage Dashboard: When powered on, users can log in to monitor and manage the entire factory's electricity consumption, revenue, etc.
The system's entire homepage retrieves real-time data, making it highly intuitive.
Earnings can be easily exported, with one—click report generation and real—time remote statistics.
