 | Nominal Voltage(V) | 3.2V |
| Capacity(Ah) | 300Ah | |
| Nominal Cycle Life(25°C) | 6000(0.5C/0.5C) | |
Internal Resistance(mΩ) | ≤ 0.18mΩ | |
| Capacity Retention | ≥70% | |
| Weight(g) | 1900+300 | |
| Charge Temperature(°C) | 0~60℃ | |
| Discharge Temperature(°C) | -30~60℃C | |
| Certification | GB、T36276、UL1973、 UL9540A、IEC62619、UL1642 |
| Capacity | 15KWH |
| Configuration | 16S1P | |
| Nominal Voltage | 51.2V | |
Cell capacity | 300Ah | |
| Discharge Cut-off | 44.8V | |
| Charge Cut-off | 57.6v | |
| Max. Continuous Discharge Current | 150A | |
| Max. Continuous Charge Current | 150A | |
| Cycle Life | ≥ 6000 cycles | |
| Operating Temperature | -20°C to60°C | |
| Dimension | 1001*530*480mm | |
| Weight | 140Kg |
Q1: What is included in the TaoYan All-in-One Energy Storage System?Answer:

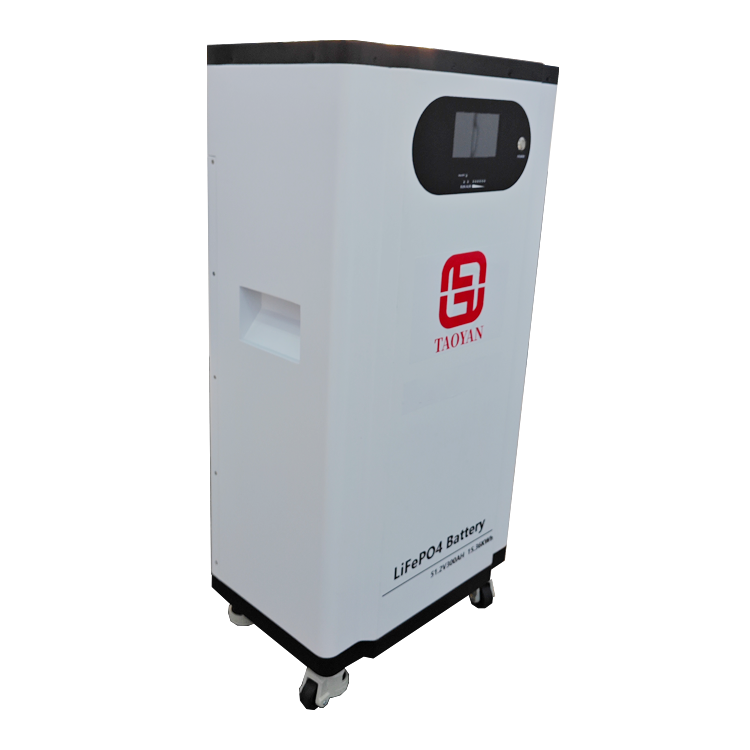

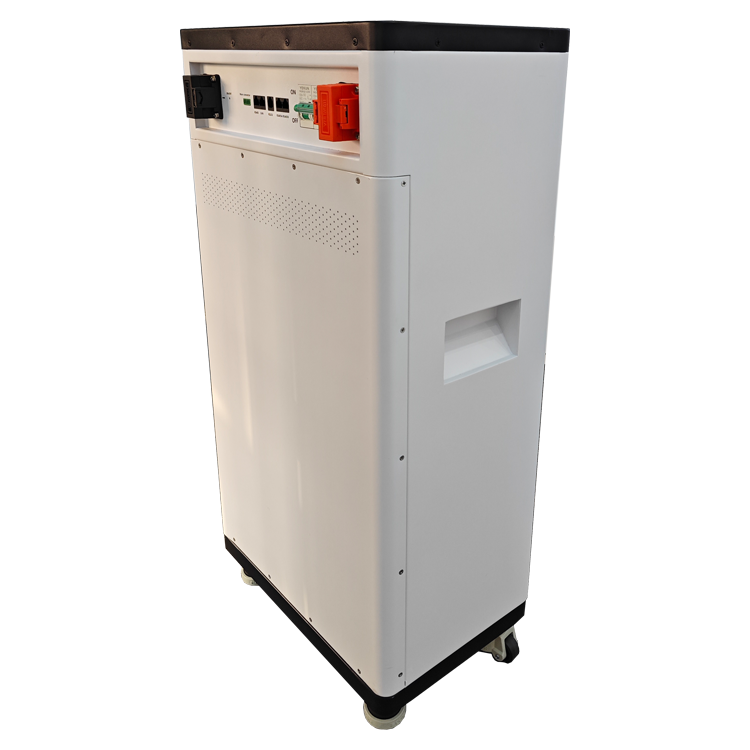

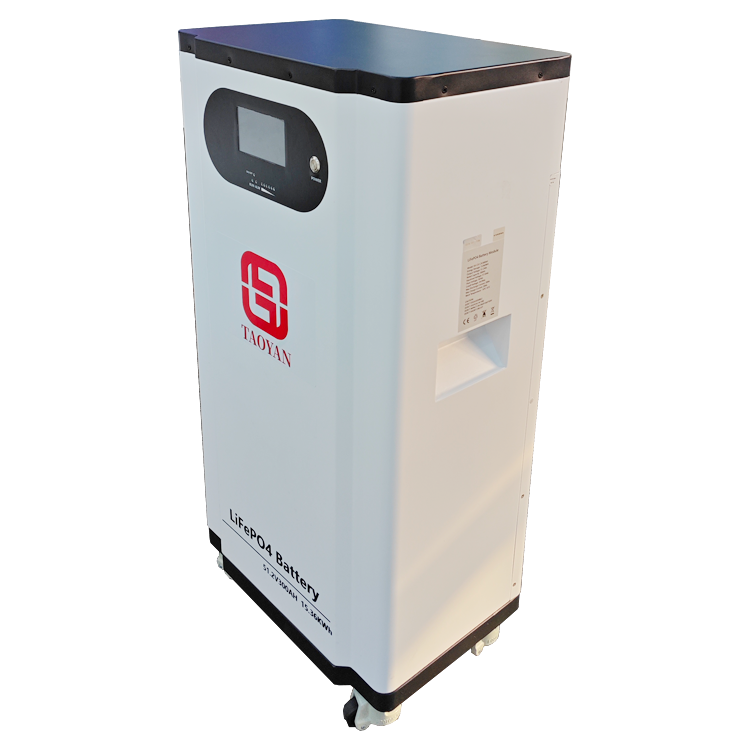

Our All-in-One system is a fully integrated solution that combines a 5kW high-efficiency hybrid inverter and a 10.24kWh premium LiFePO4 battery storage module in one sleek cabinet. It is designed for easy "plug-and-play" installation, eliminating the need for complex wiring between separate components.
Q2: Can this 10kWh system be expanded if my energy needs increase?Answer:
Yes, the system is designed with scalability in mind. You can easily expand the storage capacity by adding additional battery modules in parallel. This allows you to grow your energy reserve from 10.24kWh to a larger capacity as your household power demands increase.
Q3: How does the "Hybrid" function work during a power outage?Answer:
In the event of a grid failure, the system automatically switches to "Off-Grid" mode in less than 10 milliseconds (UPS-level switching). This ensures that your essential appliances, such as refrigerators, lights, and routers, continue to run without interruption using stored solar or battery energy.
Q4: Is the system compatible with my existing solar panels?Answer:
Absolutely. The integrated 5kW hybrid inverter features a built-in MPPT controller, which allows it to connect directly to most standard solar panel arrays. It can manage energy flow from solar, the grid, and the battery simultaneously to maximize your self-consumption.
Q5: What kind of maintenance does this all-in-one system require?Answer:
The system is virtually maintenance-free. It features an intelligent Battery Management System (BMS) and an advanced cooling design that monitors the health of the cells 24/7. You can also monitor the system performance in real-time via a mobile app or web portal to ensure everything is running optimally.
